Mediwatch Portascan+

$3,650.00

Brand New Mediwatch Portascan+ with Warranty

Quantity

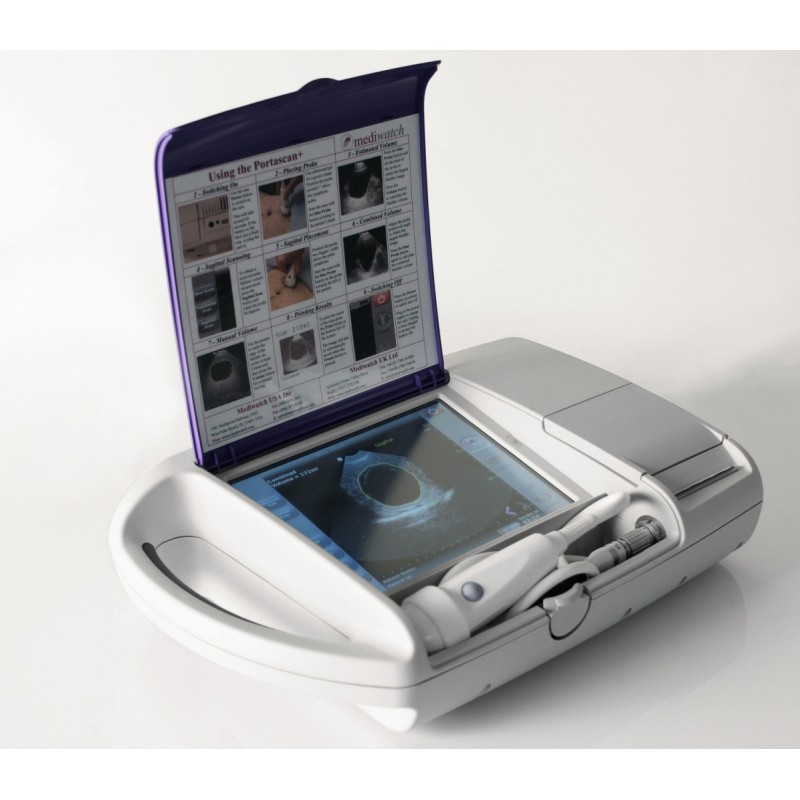

Mediwatch Portascan+

Simple point-and-freeze operation makes the Portascan+ the scanner of choice for the busy clinical environment. The Portascan+ calculates the bladder volume automatically from an ultrasound image. A built-in thermal printer provides a permanent hard copy printout of results for accurate record keeping and archiving.

Wireless Communication
The Mediwatch Portaflow Advanced enables wireless integration of uroflow or PSA data. Results may be printed on the in-built thermal printer or sent to a Bluetooth® desktop printer for a full printout of a complete bladder report showing:

  • Bladder images
  • Uroflow graph
  • Urinalysis data
  • Post void volume
  • Uroflow data
  • PSA value


Features and Benefits

  • Real-time ultrasound scanning & image capture
  • Simple, intuitive software with touch-screen input
  • 3.5 - 5.0 MHz abdominal probe for adults & children
  • Automatic bladder volume calculation
  • Touch-screen length & width callipers for kidney or other organ measurement
  • Large database for storage of images, records and reports
  • In-built thermal printer for immediate results
  • Bluetooth® wireless connectivity (with PortaflowTM or BioscanTM PSAwatchTM reader)
  • On-board touch-screen virtual keyboard for data input
  • Optional USB input / output
  • Integrated carry handle & protective screen cover


Technical Specifications

  • Dimensions: 36 cm (W) x 25 (H) cm x 9 cm (D)
  • Weight: 3.0 Kgs with battery & probe
  • Screen: 8.4 inch colour SVGA TFT LCD
  • Probe Frequencies: 3.5 5.0 MHz
  • Accuracy: 0-699ml +/- 10% +/- 20ml, 700-1500 ml +/- 7.5% +/- 25 ml
  • Organ Volume: 0-1500 ml
  • Scanning Method: Mechanical Sector
  • Input Method: Touchscreen or optional USB keyboard/mouse
  • Operating System: Windows XP on compact flash
  • Power: Rechargeable internal battery or external power supply
  • Battery Life: 3 hours
  • Operating Conditions: 8 to 40°C, up to 90% RH (20°C)
  • Environmental Requirements: -10 to 40°C
  • Connectivity: USB and Bluetooth
  • CE Marked: 0843


Package Includes:

  • Portascan+ Scanner
  • 3.5/5.0MHz Probe
  • Printer
  • 2 batteries
