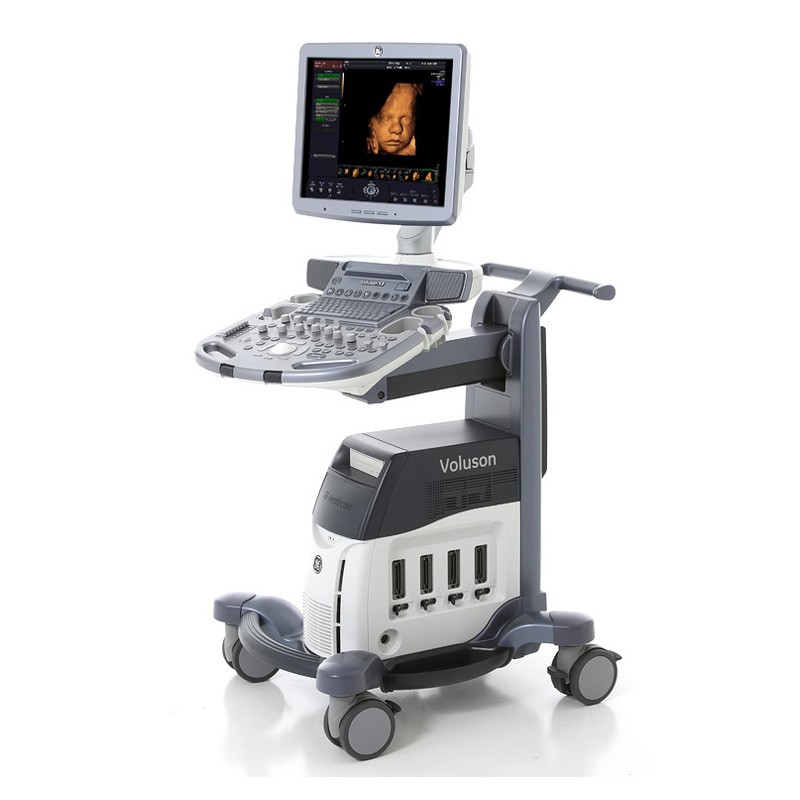

GE VOLUSON S8 Ultrasound

GE VOLUSON S8 Ultrasound

Application training for the GE Voluson S8

KPI’s on-staff sonographer can provide onsite applications training or remote training via video conference for the Voluson S8 at a set price plus travel costs. A pre-recorded video training course is included in the sale, lease or rental of the Voluson S8 from KPI ultrasound.

Voluson S8 Service options

Free technical support is available from KPI during installation and over the course of the standard limited warranty. Technical support is available after the warranty period at an hourly cost per issue.

GE Voluson S8 Maintenance:

KPI recommends the use of a surge protector along with a dedicated power outlet. Probes should be disinfected after every use with a disinfectant wipe proven not to damage the lens (KPI recommends SonoWipes for this.) KPI recommends one PM (preventative maintenance) every year.

GE Voluson S8 Dimensions & Weight

Height: (adjustable, maximum) 1725 mm (67.9 in), (minimum) 975 mm (38.4 in)
Width: 620 mm (24.4 in)
Depth: 850 mm (33.4 in)
Weight: (no Peripherals) 90 kg (198 lbs.), approx. 325 lbs. with packaging

Voluson S8 Specifications

Digital Beamformer
335,127 system processing channel technology
Minimum Depth of Field: 0-1 cm (Zoom, probe dependent)
Maximum Depth of Field: 0-36 cm (probe dependent)
Up to 261 dB Dynamic Range adjustable by selecting 12 Dynamic Contrast Curves

GE Voluson S8 Electrical

Voltage: 100-120VAC, 220-240VAC
Frequency: 50/60 Hz (+/-2%)
Power consumption: Nominal 900VA including all options. Typical power consumption with 500VA load approx. 1.75A at 230V/50Hz without peripherals.
Thermal Output: 1200 BTU/h
