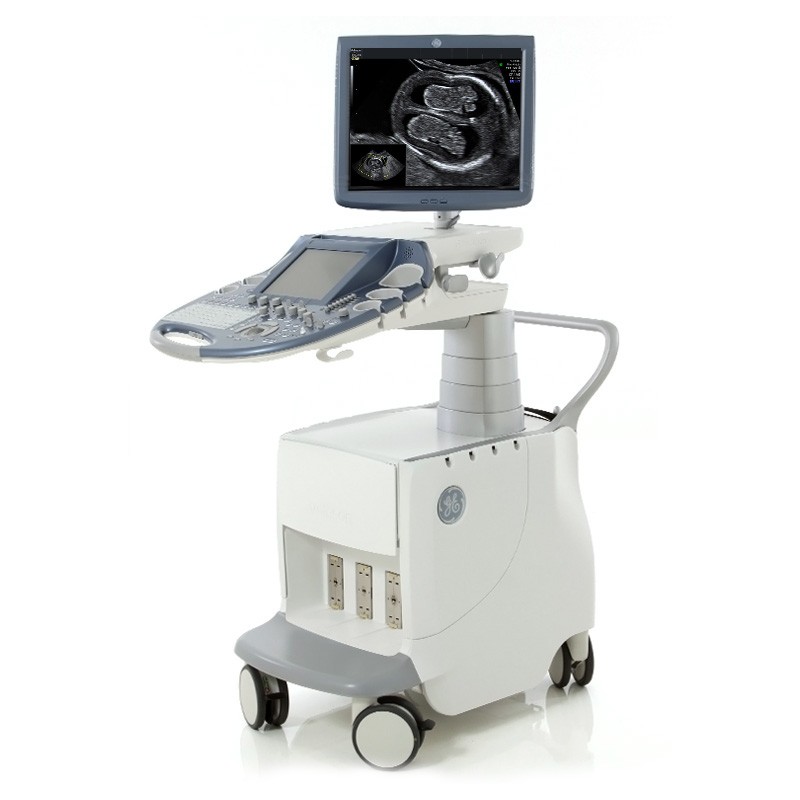

GE voluson e8 Ultrasound

GE voluson e8 Ultrasound

Application training for the GE Voluson E8

KPI’s on-staff sonographer can provide onsite applications training or remote training via video conference for the Voluson E8 at a set price plus travel costs. A pre-recorded video training course is included in the sale, lease or rental of the Voluson E8 from KPI ultrasound.

Voluson E8 Service options:

Free technical support is available from KPI during installation and over the course of the standard limited warranty. Technical support is available after the warranty period at an hourly cost per issue.

GE Voluson E8 Maintenance:

KPI recommends the use of a surge protector along with a dedicated power outlet. Probes should be disinfected after every use with a disinfectant wipe proven not to damage the lens (KPI recommends SonoWipes for this.) One PM visit (preventative maintenance) every year.

GE Voluson E8 Dimensions & Weight

Height: (adjustable, maximum) 1393 mm (54.8 in)
Width: 580 mm (22.8 in)
Depth: 920 mm (36 in)
Weight: (no Peripherals) 131 kg (289 lb), approx 400 lbs with packaging

Voluson E8 Specifications

Digital Beam former
1,979,578 system processing channel technology
Displayed Imaging Depth: 0 – 30 cm
Minimum Depth of Field: 0 – 1 cm (Zoom, probe dependent)
Maximum Depth of Field: 0 – 36 cm (probe dependent)
Up to 274 dB Dynamic Range

GE Voluson E8 Electrical power

Voltage 100, 115-130, 220-240 VAC
Frequency 50/60 Hz (+/-2%)
Power Max. 1000 VA with on-board Peripherals
Thermal Output 3446 BTU/h
