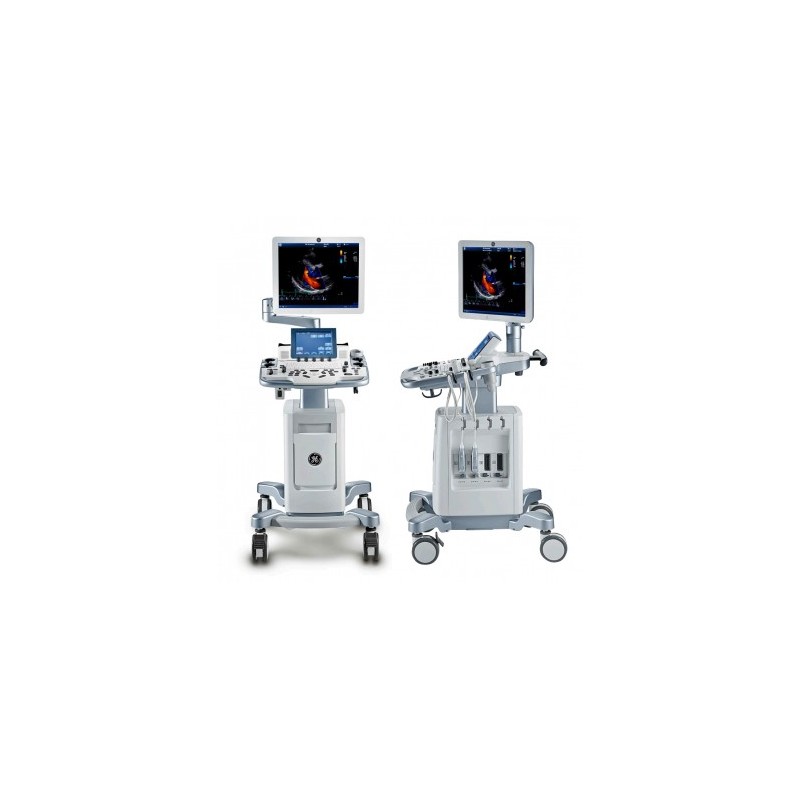

GE VIVID S70 Ultrasound

GE VIVID S70 Ultrasound

Application training for the GE Vivid T8:

KPI’s on-staff sonographer can provide onsite applications training or remote training via video conference at a set price plus travel costs. A pre-recorded video training course is included in the sale, lease or rental of the Voluson E8 from KPI ultrasound.

GE Vivid T8 Service options:

Free technical support is available from KPI during installation and over the course of the standard limited warranty. Technical support is available after the warranty period at an hourly cost per issue.

GE Vivid T8 Maintenance:

KPI recommends the use of a surge protector along with a dedicated power outlet. Probes should be disinfected after every use with a disinfectant wipe proven not to damage the lens (KPI recommends SonoWipes for this.) One PM visit (preventative maintenance) every year.

GE Vivid T8 FAQ:

Dimensions and Weight
• Width:
– Keyboard: 500 mm (19.7 in)
– Caster: 720 mm (28.3 in)
• Depth:
– Maximum: 810 mm (31.9 in)
– Caster: 800 mm (31.5 in)
• Height:
– Maximum: 1495 mm (58.9 in)
– Minimum: 1410 mm (55.5 in)
• Weight: 58 kg, 128 lbs

GE Vivid T8 Specifications:

• Digital beamformer with up to 193,536 effective digital channels
• Displayed imaging depth: 0 – 30 cm
(probe dependent)
• Minimum depth of field: 0 – 2 cm
(probe dependent)
• Maximum depth of field: 0 – 33 cm
(probe dependent)
• Continuous dynamic receive
focus/continuous dynamic
receive aperture
• Adjustable dynamic range
up to 120 dB

GE Vivid T8 Electrical power:

• Nominal input voltage:
100-240 VAC, frequency 50/60 Hz
• Power consumption maximum:
400 VA with peripherals
